Deploying a Hub-and-Spoke in Azure Using Terraform

Posted Updated
Preview Image
By Francisco Carmona 27 min read

Introduction

In this walkthrough, we will take a deep dive into how to deploy a hub-and-spoke network architecture in Azure with the help of Terraform.

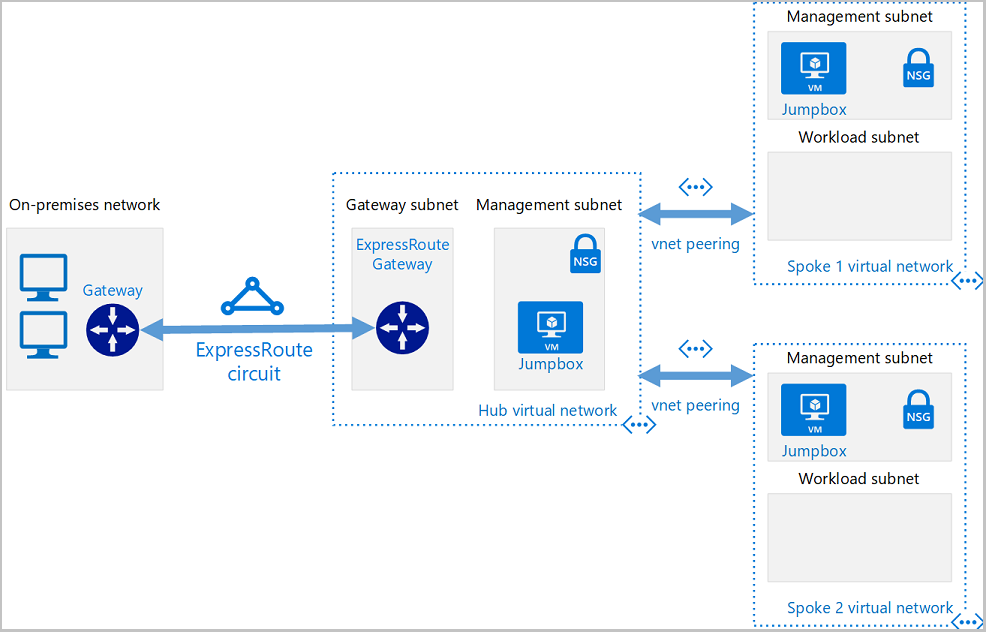

The following image demonstrates the components in a hub and spoke topology: hub-and-spoke-topology

Understand Hub and Spoke Topology

The hub and spoke topology is a network design that isolates workloads while sharing common services like identity and security. The hub is a central VNet connected to the on-premises network, and the spokes are VNets that peer with the hub.

Hub-Spoke Use Cases:

  • The hub VNET could house certain services and resources that the isolated spoke networks each need to utilize. Workloads in different environments (e.g., development, testing, production) could utilize DNS, IDS, and/or AD DS.
  • For organizations that require central control over security.

Configure Your Environment

Before diving into Terraform, ensure your environment is set up with the necessary tools and access rights. This includes installing Terraform and configuring it to interact with Azure.

Components defined in the Terraform scripts we plan on deploying.

  • On-premises network. A VNet in Azure will be used to simulate an on-premises local-area network running within an organization.
  • VPN device. Either a hardware appliance or software solution, a VPN device/service serves to provide external connectivity to the on-premises network.
  • Hub VNet. The central point of connectivity to your on-premises network and a place to host services consumed by the different workloads hosted in the spoke VNets.
  • Gateway subnet. The VNet gateways are held in the same subnet.
  • Spoke VNets. Spokes are used to isolate workloads in their own VNets, managed separately from other spokes.
  • VNet peering. Peering connections are non-transitive, low latency connections between VNets. Once peered, the VNets exchange traffic by using the Azure backbone.

main.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

terraform {

  required_version = ">=0.12"

  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~>2.0"
    }
  }
}

provider "azurerm" {
  features {}
}

Explanation:

  • The terraform block sets the Terraform version to 0.12 or later and specifies the Azure Resource Manager (azurerm) provider with version 2.x.
  • The provider "azurerm" block is simply means that no specific features are being enabled or configured.

variables.tf

Create a file named variables.tf to contain the project variables and insert the following code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

variable "location" {
    description = "Location of the network"
    default     = "eastus"
}

variable "username" {
    description = "Username for Virtual Machines"
    default     = "azureuser"
}

variable "password" {
    description = "Password for Virtual Machines"
}

variable "vmsize" {
    description = "Size of the VMs"
    default     = "Standard_DS1_v2"
}

Explanation The above doesn’t need to be spelled out. It simply states what will be the default values moving forward when calling on these variables.

Note: This walkthrough uses a password you enter when you calling terraform plan. In a real-world app, you might consider using a SSH public/private key pair. For more on this, see How to use SSH keys with Windows on Azure.

Create on-premises virtual network in Azure using Terraform: on-prem.tf

on-prem.tf file below implements an on-premises network in Azure. If looking to replace the sample network with a private virtual network, simply modify the subnet IP addresses.

  • Implement an on-premises VNet in hub-spoke topology
  • Create hub network appliance resources
  • Create on-premises virtual machine
  • Create on-premises virtual private network gateway
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163

locals {
    onprem-location       = "eastus"
    onprem-resource-group = "onprem-vnet-rg"
    prefix-onprem         = "onprem"
}

# Resource Group Creation
resource "azurerm_resource_group" "onprem-vnet-rg" {
    name     = local.onprem-resource-group
    location = local.onprem-location
}

# VIRTUAL NETWORKS
resource "azurerm_virtual_network" "onprem-vnet" {
    name                = "onprem-vnet"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name
    address_space       = ["192.168.0.0/16"]

    tags = {
    environment = local.prefix-onprem
    }
}

# SUBNETS
resource "azurerm_subnet" "onprem-gateway-subnet" {
    name                 = "GatewaySubnet"
    resource_group_name  = azurerm_resource_group.onprem-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.onprem-vnet.name
    address_prefixes     = ["192.168.255.224/27"]
}


resource "azurerm_subnet" "onprem-mgmt" {
    name                 = "mgmt"
    resource_group_name  = azurerm_resource_group.onprem-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.onprem-vnet.name
    address_prefixes     = ["192.168.1.128/25"]
}

# PUBLIC IPs
resource "azurerm_public_ip" "onprem-pip" {
    name                         = "${local.prefix-onprem}-pip"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name
    allocation_method   = "Dynamic"

    tags = {
        environment = local.prefix-onprem
    }
}

# NICs
resource "azurerm_network_interface" "onprem-nic" {
    name                 = "${local.prefix-onprem}-nic"
    location             = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name  = azurerm_resource_group.onprem-vnet-rg.name
    enable_ip_forwarding = true

    ip_configuration {
    name                          = local.prefix-onprem
    subnet_id                     = azurerm_subnet.onprem-mgmt.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.onprem-pip.id
    }
}

# NETWORK SECURITY GROUP AND RULES
resource "azurerm_network_security_group" "onprem-nsg" {
    name                = "${local.prefix-onprem}-nsg"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name

    security_rule {
        name                       = "SSH"
        priority                   = 1001
        direction                  = "Inbound"
        access                     = "Allow"
        protocol                   = "Tcp"
        source_port_range          = "*"
        destination_port_range     = "22"
        source_address_prefix      = "*"
        destination_address_prefix = "*"
    }

    tags = {
        environment = "onprem"
    }
}

resource "azurerm_subnet_network_security_group_association" "mgmt-nsg-association" {
    subnet_id                 = azurerm_subnet.onprem-mgmt.id
    network_security_group_id = azurerm_network_security_group.onprem-nsg.id
}

# VIRTUAL MACHINE
resource "azurerm_virtual_machine" "onprem-vm" {
    name                  = "${local.prefix-onprem}-vm"
    location              = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name   = azurerm_resource_group.onprem-vnet-rg.name
    network_interface_ids = [azurerm_network_interface.onprem-nic.id]
    vm_size               = var.vmsize

    storage_image_reference {
    publisher = "Canonical"
    offer     = "UbuntuServer"
    sku       = "16.04-LTS"
    version   = "latest"
    }

    storage_os_disk {
    name              = "myosdisk1"
    caching           = "ReadWrite"
    create_option     = "FromImage"
    managed_disk_type = "Standard_LRS"
    }

    os_profile {
    computer_name  = "${local.prefix-onprem}-vm"
    admin_username = var.username
    admin_password = var.password
    }

    os_profile_linux_config {
    disable_password_authentication = false
    }

    tags = {
    environment = local.prefix-onprem
    }
}

# VPN GATEWAY PUBLIC IP
resource "azurerm_public_ip" "onprem-vpn-gateway1-pip" {
    name                = "${local.prefix-onprem}-vpn-gateway1-pip"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name

    allocation_method = "Dynamic"
}

# VIRTUAL NETWORK GATEWAY
resource "azurerm_virtual_network_gateway" "onprem-vpn-gateway" {
    name                = "onprem-vpn-gateway1"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name

    type     = "Vpn"
    vpn_type = "RouteBased"

    active_active = false
    enable_bgp    = false
    sku           = "VpnGw1"

    ip_configuration {
    name                          = "vnetGatewayConfig"
    public_ip_address_id          = azurerm_public_ip.onprem-vpn-gateway1-pip.id
    private_ip_address_allocation = "Dynamic"
    subnet_id                     = azurerm_subnet.onprem-gateway-subnet.id
    }
    depends_on = [azurerm_public_ip.onprem-vpn-gateway1-pip]

}

Explantion:

  • The locals block defines local values that can be used throughout the script.
  • The azurerm_resource_group block creates a resource group in Azure.
  • The azurerm_virtual_network block creates a virtual network in the resource group.
  • The azurerm_subnet blocks create two subnets within the virtual network.
  • The azurerm_public_ip block creates a public IP address.
  • The azurerm_network_interface block creates a network interface and associates it with the subnet and public IP.
  • The azurerm_network_security_group block creates a network security group with an inbound rule allowing SSH traffic.
  • The azurerm_subnet_network_security_group_association block associates the network security group with the subnet.
  • The azurerm_virtual_machine block creates a virtual machine and associates it with the network interface.
  • The azurerm_public_ip block creates another public IP for the VPN gateway.
  • The azurerm_virtual_network_gateway block creates a VPN gateway and associates it with the public IP and the gateway subnet.

This script sets up a network environment with a virtual machine and a VPN gateway, both of which are accessible via public IP addresses. The network security group allows SSH traffic to the virtual machine. The VPN gateway allows secure connections to the network. The entire setup is contained within a single resource group. The use of local values and variables allows for easy customization of the script.

Explanation: This block defines a Virtual Network (VNet) in Azure, which will act as the hub in our topology. It specifies the address space, location, and other parameters.

1

# [ TERRAFORM CODE BLOCK FOR PEERING VNets]

Explanation: This code snippet establishes peering between the hub VNet and spoke VNets, allowing them to communicate and share services[^7^][7].

Create a Hub Virtual Network

hub-vnet.tf file implements the “hub” in the hub-and-spoke topology.

  • Create a hub jumpbox virtual machine.
  • Create a hub virtual private network gateway.
  • Create hub and on-premises gateway connections.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153

locals {
    prefix-hub         = "hub"
    hub-location       = "eastus"
    hub-resource-group = "hub-vnet-rg"
    shared-key         = "4-v3ry-53cr37-1p53c-5h4r3d-k3y"
}

resource "azurerm_resource_group" "hub-vnet-rg" {
    name     = local.hub-resource-group
    location = local.hub-location
}

resource "azurerm_virtual_network" "hub-vnet" {
    name                = "${local.prefix-hub}-vnet"
    location            = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name = azurerm_resource_group.hub-vnet-rg.name
    address_space       = ["10.0.0.0/16"]

    tags = {
    environment = "hub-spoke"
    }
}

resource "azurerm_subnet" "hub-gateway-subnet" {
    name                 = "GatewaySubnet"
    resource_group_name  = azurerm_resource_group.hub-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.hub-vnet.name
    address_prefixes     = ["10.0.255.224/27"]
}

resource "azurerm_subnet" "hub-mgmt" {
    name                 = "mgmt"
    resource_group_name  = azurerm_resource_group.hub-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.hub-vnet.name
    address_prefixes       = ["10.0.0.64/27"]
}

resource "azurerm_subnet" "hub-dmz" {
    name                 = "dmz"
    resource_group_name  = azurerm_resource_group.hub-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.hub-vnet.name
    address_prefixes       = ["10.0.0.32/27"]
}

resource "azurerm_network_interface" "hub-nic" {
    name                 = "${local.prefix-hub}-nic"
    location             = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name  = azurerm_resource_group.hub-vnet-rg.name
    enable_ip_forwarding = true

    ip_configuration {
    name                          = local.prefix-hub
    subnet_id                     = azurerm_subnet.hub-mgmt.id
    private_ip_address_allocation = "Dynamic"
    }

    tags = {
    environment = local.prefix-hub
    }
}

#Virtual Machine
resource "azurerm_virtual_machine" "hub-vm" {
    name                  = "${local.prefix-hub}-vm"
    location              = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name   = azurerm_resource_group.hub-vnet-rg.name
    network_interface_ids = [azurerm_network_interface.hub-nic.id]
    vm_size               = var.vmsize

    storage_image_reference {
    publisher = "Canonical"
    offer     = "UbuntuServer"
    sku       = "16.04-LTS"
    version   = "latest"
    }

    storage_os_disk {
    name              = "myosdisk1"
    caching           = "ReadWrite"
    create_option     = "FromImage"
    managed_disk_type = "Standard_LRS"
    }

    os_profile {
    computer_name  = "${local.prefix-hub}-vm"
    admin_username = var.username
    admin_password = var.password
    }

    os_profile_linux_config {
    disable_password_authentication = false
    }

    tags = {
    environment = local.prefix-hub
    }
}

# Virtual Network Gateway
resource "azurerm_public_ip" "hub-vpn-gateway1-pip" {
    name                = "hub-vpn-gateway1-pip"
    location            = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name = azurerm_resource_group.hub-vnet-rg.name

    allocation_method = "Dynamic"
}

resource "azurerm_virtual_network_gateway" "hub-vnet-gateway" {
    name                = "hub-vpn-gateway1"
    location            = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name = azurerm_resource_group.hub-vnet-rg.name

    type     = "Vpn"
    vpn_type = "RouteBased"

    active_active = false
    enable_bgp    = false
    sku           = "VpnGw1"

    ip_configuration {
    name                          = "vnetGatewayConfig"
    public_ip_address_id          = azurerm_public_ip.hub-vpn-gateway1-pip.id
    private_ip_address_allocation = "Dynamic"
    subnet_id                     = azurerm_subnet.hub-gateway-subnet.id
    }
    depends_on = [azurerm_public_ip.hub-vpn-gateway1-pip]
}

resource "azurerm_virtual_network_gateway_connection" "hub-onprem-conn" {
    name                = "hub-onprem-conn"
    location            = azurerm_resource_group.hub-vnet-rg.location
    resource_group_name = azurerm_resource_group.hub-vnet-rg.name

    type           = "Vnet2Vnet"
    routing_weight = 1

    virtual_network_gateway_id      = azurerm_virtual_network_gateway.hub-vnet-gateway.id
    peer_virtual_network_gateway_id = azurerm_virtual_network_gateway.onprem-vpn-gateway.id

    shared_key = local.shared-key
}

resource "azurerm_virtual_network_gateway_connection" "onprem-hub-conn" {
    name                = "onprem-hub-conn"
    location            = azurerm_resource_group.onprem-vnet-rg.location
    resource_group_name = azurerm_resource_group.onprem-vnet-rg.name
    type                            = "Vnet2Vnet"
    routing_weight = 1
    virtual_network_gateway_id      = azurerm_virtual_network_gateway.onprem-vpn-gateway.id
    peer_virtual_network_gateway_id = azurerm_virtual_network_gateway.hub-vnet-gateway.id

    shared_key = local.shared-key
}

Explanation:

  • locals block defines local values that can be used throughout the script.
  • azurerm_resource_group block creates a resource group in Azure.
  • azurerm_virtual_network block creates a virtual network in the resource group.
  • azurerm_subnet blocks create three subnets within the virtual network.
  • azurerm_network_interface block creates a network interface and associates it with the management subnet.
  • azurerm_virtual_machine block creates a virtual machine and associates it with the network interface.
  • azurerm_public_ip block creates a public IP for the VPN gateway.
  • azurerm_virtual_network_gateway block creates a VPN gateway and associates it with the public IP and the gateway subnet.
  • azurerm_virtual_network_gateway_connection blocks create VPN connections between the on-premises network and the hub network.

This script sets up a hub network environment with a virtual machine and a VPN gateway, both of which are accessible via public IP addresses. The network security group allows SSH traffic to the virtual machine. The VPN gateway allows secure connections to the network. The entire setup is contained within a single resource group. The use of local values and variables allows for easy customization of the script.

Create a hub virtual network appliance in Azure using Terraform: hub-nva.tf

  • Implement the Hub VNet in hub-spoke topology
  • Create Hub Network Virtual Machine which acts as appliance
  • Enable routes using CustomScript extensions
  • Create Hub and Spoke gateway route tables
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199

locals {
    prefix-hub-nva         = "hub-nva"
    hub-nva-location       = "eastus"
    hub-nva-resource-group = "hub-nva-rg"
}

resource "azurerm_resource_group" "hub-nva-rg" {
    name     = "${local.prefix-hub-nva}-rg"
    location = local.hub-nva-location

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_network_interface" "hub-nva-nic" {
    name                 = "${local.prefix-hub-nva}-nic"
    location             = azurerm_resource_group.hub-nva-rg.location
    resource_group_name  = azurerm_resource_group.hub-nva-rg.name
    enable_ip_forwarding = true

    ip_configuration {
    name                          = local.prefix-hub-nva
    subnet_id                     = azurerm_subnet.hub-dmz.id
    private_ip_address_allocation = "Static"
    private_ip_address            = "10.0.0.36"
    }

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_virtual_machine" "hub-nva-vm" {
    name                  = "${local.prefix-hub-nva}-vm"
    location              = azurerm_resource_group.hub-nva-rg.location
    resource_group_name   = azurerm_resource_group.hub-nva-rg.name
    network_interface_ids = [azurerm_network_interface.hub-nva-nic.id]
    vm_size               = var.vmsize

    storage_image_reference {
    publisher = "Canonical"
    offer     = "UbuntuServer"
    sku       = "16.04-LTS"
    version   = "latest"
    }

    storage_os_disk {
    name              = "myosdisk1"
    caching           = "ReadWrite"
    create_option     = "FromImage"
    managed_disk_type = "Standard_LRS"
    }

    os_profile {
    computer_name  = "${local.prefix-hub-nva}-vm"
    admin_username = var.username
    admin_password = var.password
    }

    os_profile_linux_config {
    disable_password_authentication = false
    }

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_virtual_machine_extension" "enable-routes" {
    name                 = "enable-iptables-routes"
    virtual_machine_id   = azurerm_virtual_machine.hub-nva-vm.id
    publisher            = "Microsoft.Azure.Extensions"
    type                 = "CustomScript"
    type_handler_version = "2.0"


    settings = <<SETTINGS
    {
        "fileUris": [
        "https://raw.githubusercontent.com/mspnp/reference-architectures/master/scripts/linux/enable-ip-forwarding.sh"
        ],
        "commandToExecute": "bash enable-ip-forwarding.sh"
    }
SETTINGS

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_route_table" "hub-gateway-rt" {
    name                          = "hub-gateway-rt"
    location                      = azurerm_resource_group.hub-nva-rg.location
    resource_group_name           = azurerm_resource_group.hub-nva-rg.name
    disable_bgp_route_propagation = false

    route {
    name           = "toHub"
    address_prefix = "10.0.0.0/16"
    next_hop_type  = "VnetLocal"
    }

    route {
    name                   = "toSpoke1"
    address_prefix         = "10.1.0.0/16"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = "10.0.0.36"
    }

    route {
    name                   = "toSpoke2"
    address_prefix         = "10.2.0.0/16"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = "10.0.0.36"
    }

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_subnet_route_table_association" "hub-gateway-rt-hub-vnet-gateway-subnet" {
    subnet_id      = azurerm_subnet.hub-gateway-subnet.id
    route_table_id = azurerm_route_table.hub-gateway-rt.id
    depends_on = [azurerm_subnet.hub-gateway-subnet]
}

resource "azurerm_route_table" "spoke1-rt" {
    name                          = "spoke1-rt"
    location                      = azurerm_resource_group.hub-nva-rg.location
    resource_group_name           = azurerm_resource_group.hub-nva-rg.name
    disable_bgp_route_propagation = false

    route {
    name                   = "toSpoke2"
    address_prefix         = "10.2.0.0/16"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = "10.0.0.36"
    }

    route {
    name           = "default"
    address_prefix = "0.0.0.0/0"
    next_hop_type  = "vnetlocal"
    }

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_subnet_route_table_association" "spoke1-rt-spoke1-vnet-mgmt" {
    subnet_id      = azurerm_subnet.spoke1-mgmt.id
    route_table_id = azurerm_route_table.spoke1-rt.id
    depends_on = [azurerm_subnet.spoke1-mgmt]
}

resource "azurerm_subnet_route_table_association" "spoke1-rt-spoke1-vnet-workload" {
    subnet_id      = azurerm_subnet.spoke1-workload.id
    route_table_id = azurerm_route_table.spoke1-rt.id
    depends_on = [azurerm_subnet.spoke1-workload]
}

resource "azurerm_route_table" "spoke2-rt" {
    name                          = "spoke2-rt"
    location                      = azurerm_resource_group.hub-nva-rg.location
    resource_group_name           = azurerm_resource_group.hub-nva-rg.name
    disable_bgp_route_propagation = false

    route {
    name                   = "toSpoke1"
    address_prefix         = "10.1.0.0/16"
    next_hop_in_ip_address = "10.0.0.36"
    next_hop_type          = "VirtualAppliance"
    }

    route {
    name           = "default"
    address_prefix = "0.0.0.0/0"
    next_hop_type  = "vnetlocal"
    }

    tags = {
    environment = local.prefix-hub-nva
    }
}

resource "azurerm_subnet_route_table_association" "spoke2-rt-spoke2-vnet-mgmt" {
    subnet_id      = azurerm_subnet.spoke2-mgmt.id
    route_table_id = azurerm_route_table.spoke2-rt.id
    depends_on = [azurerm_subnet.spoke2-mgmt]
}

resource "azurerm_subnet_route_table_association" "spoke2-rt-spoke2-vnet-workload" {
    subnet_id      = azurerm_subnet.spoke2-workload.id
    route_table_id = azurerm_route_table.spoke2-rt.id
    depends_on = [azurerm_subnet.spoke2-workload]
}

Explanation:

  • locals block defines local values that can be used throughout the script.
  • azurerm_resource_group block creates a resource group in Azure.
  • azurerm_network_interface block creates a network interface and associates it with the DMZ subnet.
  • azurerm_virtual_machine block creates a virtual machine and associates it with the network interface.
  • azurerm_virtual_machine_extension block enables IP forwarding on the virtual machine.
  • azurerm_route_table blocks create route tables for the hub gateway and the spoke networks.
  • azurerm_subnet_route_table_association blocks associate the route tables with the respective subnets.

This script sets up a hub network environment with a virtual machine and a VPN gateway, both of which are accessible via public IP addresses. The network security group allows SSH traffic to the virtual machine. The VPN gateway allows secure connections to the network. The entire setup is contained within a single resource group. The use of local values and variables allows for easy customization of the script. The route tables ensure that traffic is routed correctly between the hub and spoke networks. The virtual machine extension enables IP forwarding, allowing the virtual machine to forward traffic between networks.

Creating Spoke Networks: spoke1.tf and spoke2.tf

  • Implement the Spoke VNets in hub-spoke topology
  • Create Virtual machines in the spoke networks
  • Establish virtual network peerings with the hub networks

Below is the implementation of two separate spoke networks to demonstrate separation of workloads. The networks share common resources using hub virtual network. Spokes can be used to isolate workloads in their own VNets, managed separately from other spokes. Each workload might include multiple tiers, with multiple subnets connected through Azure load balancers

spoke1.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109

locals {
    spoke1-location       = "eastus"
    spoke1-resource-group = "spoke1-vnet-rg"
    prefix-spoke1         = "spoke1"
}

resource "azurerm_resource_group" "spoke1-vnet-rg" {
    name     = local.spoke1-resource-group
    location = local.spoke1-location
}

resource "azurerm_virtual_network" "spoke1-vnet" {
    name                = "spoke1-vnet"
    location            = azurerm_resource_group.spoke1-vnet-rg.location
    resource_group_name = azurerm_resource_group.spoke1-vnet-rg.name
    address_space       = ["10.1.0.0/16"]

    tags = {
    environment = local.prefix-spoke1
    }
}

resource "azurerm_subnet" "spoke1-mgmt" {
    name                 = "mgmt"
    resource_group_name  = azurerm_resource_group.spoke1-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.spoke1-vnet.name
    address_prefixes     = ["10.1.0.64/27"]
}

resource "azurerm_subnet" "spoke1-workload" {
    name                 = "workload"
    resource_group_name  = azurerm_resource_group.spoke1-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.spoke1-vnet.name
    address_prefixes     = ["10.1.1.0/24"]
}

resource "azurerm_virtual_network_peering" "spoke1-hub-peer" {
    name                      = "spoke1-hub-peer"
    resource_group_name       = azurerm_resource_group.spoke1-vnet-rg.name
    virtual_network_name      = azurerm_virtual_network.spoke1-vnet.name
    remote_virtual_network_id = azurerm_virtual_network.hub-vnet.id

    allow_virtual_network_access = true
    allow_forwarded_traffic = true
    allow_gateway_transit   = false
    use_remote_gateways     = true
    depends_on = [azurerm_virtual_network.spoke1-vnet, azurerm_virtual_network.hub-vnet , azurerm_virtual_network_gateway.hub-vnet-gateway]
}

resource "azurerm_network_interface" "spoke1-nic" {
    name                 = "${local.prefix-spoke1}-nic"
    location             = azurerm_resource_group.spoke1-vnet-rg.location
    resource_group_name  = azurerm_resource_group.spoke1-vnet-rg.name
    enable_ip_forwarding = true

    ip_configuration {
    name                          = local.prefix-spoke1
    subnet_id                     = azurerm_subnet.spoke1-mgmt.id
    private_ip_address_allocation = "Dynamic"
    }
}

resource "azurerm_virtual_machine" "spoke1-vm" {
    name                  = "${local.prefix-spoke1}-vm"
    location              = azurerm_resource_group.spoke1-vnet-rg.location
    resource_group_name   = azurerm_resource_group.spoke1-vnet-rg.name
    network_interface_ids = [azurerm_network_interface.spoke1-nic.id]
    vm_size               = var.vmsize

    storage_image_reference {
    publisher = "Canonical"
    offer     = "UbuntuServer"
    sku       = "16.04-LTS"
    version   = "latest"
    }

    storage_os_disk {
    name              = "myosdisk1"
    caching           = "ReadWrite"
    create_option     = "FromImage"
    managed_disk_type = "Standard_LRS"
    }

    os_profile {
    computer_name  = "${local.prefix-spoke1}-vm"
    admin_username = var.username
    admin_password = var.password
    }

    os_profile_linux_config {
    disable_password_authentication = false
    }

    tags = {
    environment = local.prefix-spoke1
    }
}

resource "azurerm_virtual_network_peering" "hub-spoke1-peer" {
    name                      = "hub-spoke1-peer"
    resource_group_name       = azurerm_resource_group.hub-vnet-rg.name
    virtual_network_name      = azurerm_virtual_network.hub-vnet.name
    remote_virtual_network_id = azurerm_virtual_network.spoke1-vnet.id
    allow_virtual_network_access = true
    allow_forwarded_traffic   = true
    allow_gateway_transit     = true
    use_remote_gateways       = false
    depends_on = [azurerm_virtual_network.spoke1-vnet, azurerm_virtual_network.hub-vnet, azurerm_virtual_network_gateway.hub-vnet-gateway]
}

spoke2.tf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113

locals {
    spoke2-location       = "eastus"
    spoke2-resource-group = "spoke2-vnet-rg"
    prefix-spoke2         = "spoke2"
}

resource "azurerm_resource_group" "spoke2-vnet-rg" {
    name     = local.spoke2-resource-group
    location = local.spoke2-location
}

resource "azurerm_virtual_network" "spoke2-vnet" {
    name                = "${local.prefix-spoke2}-vnet"
    location            = azurerm_resource_group.spoke2-vnet-rg.location
    resource_group_name = azurerm_resource_group.spoke2-vnet-rg.name
    address_space       = ["10.2.0.0/16"]

    tags = {
    environment = local.prefix-spoke2
    }
}

resource "azurerm_subnet" "spoke2-mgmt" {
    name                 = "mgmt"
    resource_group_name  = azurerm_resource_group.spoke2-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.spoke2-vnet.name
    address_prefixes     = ["10.2.0.64/27"]
}

resource "azurerm_subnet" "spoke2-workload" {
    name                 = "workload"
    resource_group_name  = azurerm_resource_group.spoke2-vnet-rg.name
    virtual_network_name = azurerm_virtual_network.spoke2-vnet.name
    address_prefixes     = ["10.2.1.0/24"]
}

resource "azurerm_virtual_network_peering" "spoke2-hub-peer" {
    name                      = "${local.prefix-spoke2}-hub-peer"
    resource_group_name       = azurerm_resource_group.spoke2-vnet-rg.name
    virtual_network_name      = azurerm_virtual_network.spoke2-vnet.name
    remote_virtual_network_id = azurerm_virtual_network.hub-vnet.id

    allow_virtual_network_access = true
    allow_forwarded_traffic = true
    allow_gateway_transit   = false
    use_remote_gateways     = true
    depends_on = [azurerm_virtual_network.spoke2-vnet, azurerm_virtual_network.hub-vnet, azurerm_virtual_network_gateway.hub-vnet-gateway]
}

resource "azurerm_network_interface" "spoke2-nic" {
    name                 = "${local.prefix-spoke2}-nic"
    location             = azurerm_resource_group.spoke2-vnet-rg.location
    resource_group_name  = azurerm_resource_group.spoke2-vnet-rg.name
    enable_ip_forwarding = true

    ip_configuration {
    name                          = local.prefix-spoke2
    subnet_id                     = azurerm_subnet.spoke2-mgmt.id
    private_ip_address_allocation = "Dynamic"
    }

    tags = {
    environment = local.prefix-spoke2
    }
}

resource "azurerm_virtual_machine" "spoke2-vm" {
    name                  = "${local.prefix-spoke2}-vm"
    location              = azurerm_resource_group.spoke2-vnet-rg.location
    resource_group_name   = azurerm_resource_group.spoke2-vnet-rg.name
    network_interface_ids = [azurerm_network_interface.spoke2-nic.id]
    vm_size               = var.vmsize

    storage_image_reference {
    publisher = "Canonical"
    offer     = "UbuntuServer"
    sku       = "16.04-LTS"
    version   = "latest"
    }

    storage_os_disk {
    name              = "myosdisk1"
    caching           = "ReadWrite"
    create_option     = "FromImage"
    managed_disk_type = "Standard_LRS"
    }

    os_profile {
    computer_name  = "${local.prefix-spoke2}-vm"
    admin_username = var.username
    admin_password = var.password
    }

    os_profile_linux_config {
    disable_password_authentication = false
    }

    tags = {
    environment = local.prefix-spoke2
    }
}

resource "azurerm_virtual_network_peering" "hub-spoke2-peer" {
    name                      = "hub-spoke2-peer"
    resource_group_name       = azurerm_resource_group.hub-vnet-rg.name
    virtual_network_name      = azurerm_virtual_network.hub-vnet.name
    remote_virtual_network_id = azurerm_virtual_network.spoke2-vnet.id
    allow_virtual_network_access = true
    allow_forwarded_traffic   = true
    allow_gateway_transit     = true
    use_remote_gateways       = false
    depends_on = [azurerm_virtual_network.spoke2-vnet, azurerm_virtual_network.hub-vnet, azurerm_virtual_network_gateway.hub-vnet-gateway]
}

Explanation:

  • locals block defines local values that can be used throughout the script.
  • azurerm_resource_group block creates a resource group in Azure. azurerm_virtual_network block creates a virtual network in the resource group.
  • azurerm_subnet blocks create two subnets within the virtual network.
  • azurerm_virtual_network_peering block creates a peering connection between the spoke1 network and the hub network.
  • azurerm_network_interface block creates a network interface and associates it with the management subnet.
  • azurerm_virtual_machine block creates a virtual machine and associates it with the network interface.
  • azurerm_virtual_network_peering block creates a peering connection from the hub network to the spoke1 network.

This script sets up a spoke network environment with a virtual machine that is accessible via a network interface. The virtual network peering allows the spoke network to communicate with the hub network. The entire setup is contained within a single resource group. The use of local values and variables allows for easy customization of the script. The virtual machine can be accessed via SSH for management purposes.

Validate a hub and spoke network in Azure using Terraform

  • Verify the resources to be deployed
  • Create the resources in Azure
  • Verify the connectivity between different networks

Let’s execute the terraform files created. The result is a validation of the connectivity between the demo virtual networks.

Breakdown of the files created:

File NameSection
main.tfCreate a hub and spoke hybrid network topology
variables.tfCreate a hub and spoke hybrid network topology
on-prem.tfCreate on-premises virtual network
hub-vnet.tfCreate a hub virtual network with
hub-nva.tfCreate a hub virtual network appliance
spoke1.tfCreate poke virtual networks
spoke2.tfCreate a spoke virtual networks

Steps to Deploy

Initialize Terraform

Run terraform init to initialize the Terraform deployment. This command downloads the Azure provider required to manage your Azure resources.

1

terraform init -upgrade

-upgrade parameter upgrades the necessary provider plugins to the newest version that complies with the configuration’s version constraints.

Create and Review the Terraform Execution Plan

Running terraform plan creates an execution plan.

1

terraform plan -out main.tfplan
  • terraform plan: This command creates an execution plan but doesn’t apply it. It determines the necessary actions to achieve the configuration specified in your Terraform files. This allows you to verify if the execution plan aligns with your expectations before making any changes to the actual resources.
  • -out parameter: This optional parameter allows you to specify an output file for the plan. Using -out ensures that the plan you reviewed is exactly what gets applied when you run terraform apply. This way, you can ensure that your infrastructure changes are predictable and controlled. It’s a good practice to always review the plan before applying it to avoid any unexpected changes.

Apply the Terraform Execution Plan

1

terraform apply main.tfplan

  • terraform apply: This command applies the execution plan to your cloud infrastructure. It makes the actual changes to reach the desired state described in your Terraform configuration files.

  • terraform apply main.tfplan: This example command assumes you previously ran terraform plan -out main.tfplan. It applies the execution plan stored in the main.tfplan file.

  • If you specified a different filename for the -out parameter when you ran terraform plan, you should use that same filename in the call to terraform apply.

Choosing not to include the -out parameter when you running terraform plan will result in the automatic creation and application of an execution plan. That is, no initial review.

Verification and Testing

Time to verify the results of the Terraform deployment.

  1. Navigate to the resource group in the Azure portal: Log in to your Azure account drill down the onprem-vnet-rg resource group page.

  2. Select the VM: Within the onprem-vnet-rg resource group, select the VM named onprem-vm.

  3. Note the Public IP Address: Take note of the Public IP Address value of the onprem-vm.

  4. SSH into the VM: Return to the command line and run the following command to connect to the simulated on-premises environment via SSH:
    1

     ssh azureuser@<onprem_vm_ip_address>

    Replace <onprem_vm_ip_address> with the Public IP Address you noted earlier. If you changed the username from azureuser in the variables.tf file, make sure to use that username in the SSH command. Use the password you specified when you ran terraform plan.

  5. Test connectivity to the hub VNet: Once connected to the onprem-vm virtual machine, run the following command to test connectivity to the jumpbox VM in the hub VNet:
    1

     ping 10.0.0.68
  6. Test connectivity to the spoke VMs: Run the following commands to test connectivity to the jumpbox VMs in each spoke:
    1
2

     ping 10.1.0.68
 ping 10.2.0.68
  7. Exit the SSH session: To exit the SSH session on the onprem-vm virtual machine, enter exit and press Enter.

These steps help you verify that your Terraform deployment was successful and that the created resources are functioning as expected.

Clean up resources

With the exercise complete, feel free to clean up the the resources created via Terraform:

  1. Run terraform plan with the -destroy flag:
    1

       terraform plan -destroy -out main.destroy.tfplan

    This command creates an execution plan for destroying the resources specified in your Terraform configuration files. It doesn’t execute the plan, but instead determines what actions are necessary to destroy the resources. This allows you to verify whether the execution plan matches your expectations before making any changes to actual resources.

  2. Run terraform apply to apply the execution plan: This command applies the execution plan stored in the main.destroy.tfplan file, effectively destroying the resources.

    1

     terraform apply main.destroy.tfplan

Conclusion

In this blog post, we’ve walked through the process of deploying a hub and spoke architecture in Azure using Terraform. We’ve seen how Terraform’s declarative language allows us to describe our desired infrastructure setup and then automatically handles the creation and configuration of those resources.

We started with an overview of the hub and spoke topology and its benefits for isolating workloads while sharing common services. We then dove into the specifics of creating and configuring resources in Azure using Terraform, including virtual networks, subnets, network interfaces, and virtual machines.

We also discussed the importance of planning and reviewing our Terraform execution plan before applying it, ensuring that our infrastructure changes are predictable and controlled. We learned how to use the terraform plan and terraform apply commands, and how to clean up our resources when they’re no longer needed with terraform destroy.

Finally, we verified our setup by testing connectivity between our on-premises environment and the hub VNet, as well as between the hub and spoke networks.

By following this guide, you should now have a solid understanding of how to use Terraform to deploy a hub and spoke architecture in Azure. This knowledge will serve as a strong foundation for managing and automating your cloud infrastructure.

Remember, while this post provides a good starting point, the real power of Terraform lies in its flexibility and extensibility. Don’t hesitate to explore the Terraform documentation and experiment with different resources and configurations to suit your specific needs.

Thank you for reading, and happy Terraforming!

Troubleshooting Problems

If you run into any problems, please be sure to reference the Troubleshoot common problems when using Terraform on Azure page.

Azure, Terraform, IaC, Networking
azure terraform iac networks automation
This post is licensed under CC BY 4.0 by the author.
